- Title

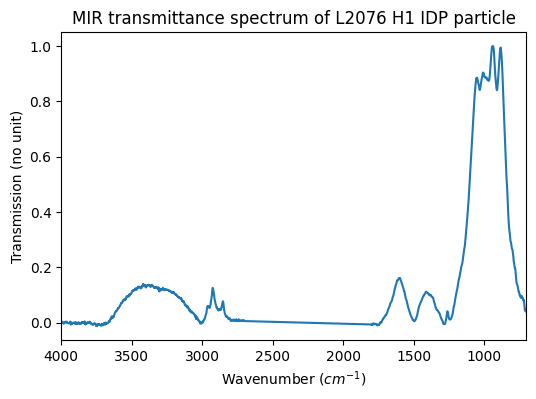

- MIR transmittance spectrum of L2076 H1 IDP particle
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2023-05-19 13:22:40 UTC+0000)
- Instrument
- SMIS NEXUS 6700 - transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 700.0 - 4000.0 $cm^{-1}$
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- IDP L2076 H1
- Texture
- single grain
- Thickness
- 3.0 $\pm$ 0.5 ${\mu}m$
- Temperature
- 20.0 $\pm$ 10.0 $^{\circ}C$
References
- Data reference
- Djouadi, Zahia; Merouane, Sihane (2013): MIR transmission spectra of eleven stratospheric IDPs. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20230519_01
