Spectrum preview
Title

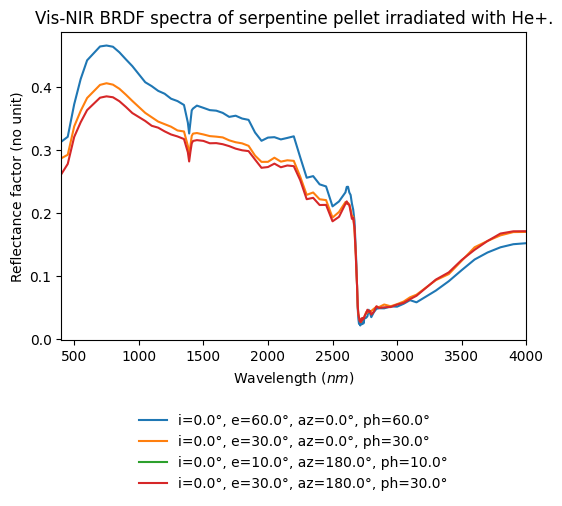

Vis-NIR BRDF spectra of serpentine pellet irradiated with He+.
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2022-09-01 07:50:25+0000 UTC)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 680.0 nm ; 680.0 - 1400.0 nm ; 1400.0 - 1420.0 nm ; 1450.0 - 2600.0 nm ; 2600.0 - 2680.0 nm ; 2680.0 - 2750.0 nm ; 2750.0 - 2800.0 nm ; 2800.0 - 2900.0 nm ; 2900.0 - 3200.0 nm ; 3200.0 - 4000.0 nm
Observation geometry
bidirectional :
Angle observation mode
two variable angles
Spatial observation mode
single spot
Sample preview
Name
Pellet of Serpentine Rawhide
Texture
compact fine grained
Thickness
600.0 ± 100.0 μm
Temperature
300.0 ± 5.0 K
Irradiated by
  • atomic ions , 40.0 keV.particle1
References
Data reference
Rubino, Stefano; Potin, Sandra; Beck, Pierre; Brissaud, Olivier; Schmitt, Bernard (2020): Vis-NIR BRDF spectra of serpentine pellets irradiated by Ar+ and He+.. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20220831_001
