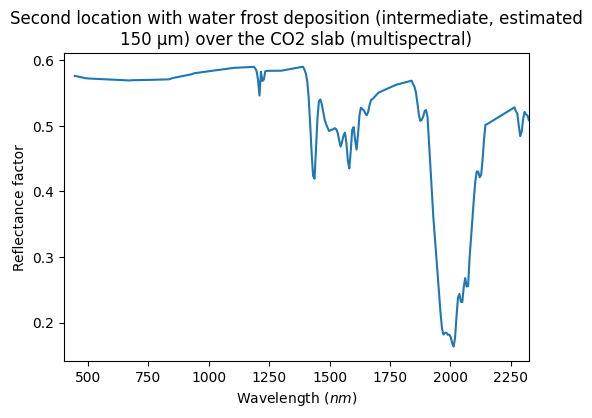

Spectrum preview
Title
Second location with water frost deposition (intermediate, estimated 150 µm) over the CO2 slab (multispectral)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-04-25 09:51:54 UTC+0000)
Instrument parameters
Instrument
SCITEAS Imaging System - hyperspectral imaging system Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 940.0 $nm$ ; 1102.0 - 1246.0 $nm$ ; 1390.0 - 2326.0 $nm$
Observation geometry
biconical : i=20.0° ; e=30.0° ; az=180.0° ; ph=50.0°
Angle observation mode
fixed angles
Spatial observation mode
roi averaged
Sample preview
Name
Second location with water frost deposition (intermediate, estimated 150 microns) over the CO2 slab
Texture
pulverulent, compact
Thickness
20.0 $\pm$ 2.0 $mm$
Temperature
160.0 $\pm$ 10.0 $K$
References
Data reference
Yoldi, Zuriñe (2018): VIS-NIR reflectance spectra of water frost condensed at the surface of a piece of compact CO2 ice. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZY_20180216_001
Publications
