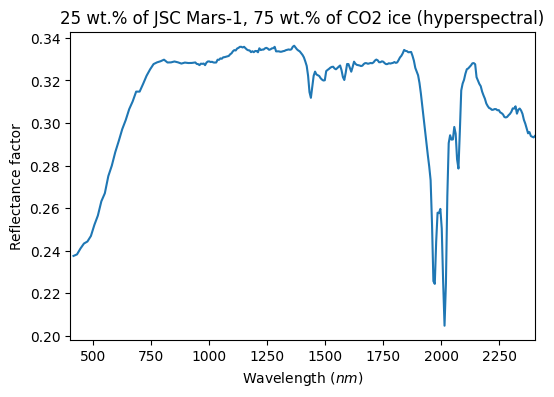

Spectrum preview
Title
25 wt.% of JSC Mars-1, 75 wt.% of CO2 ice (hyperspectral)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-04-24 07:28:15 UTC+0000)
Instrument parameters
Instrument
SCITEAS Imaging System - hyperspectral imaging system Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 940.0 $nm$ ; 946.0 - 1294.0 $nm$ ; 1306.0 - 2404.0 $nm$
Observation geometry
biconical : i=20.0° ; e=30.0° ; az=180.0° ; ph=50.0°
Angle observation mode
fixed angles
Spatial observation mode
roi averaged
Sample preview
Name
25 wt.% of JSC Mars-1, 75 wt.% of CO2 ice
Texture
loose granular
Thickness
20.0 $\pm$ 2.0 $mm$
Temperature
160.0 $\pm$ 10.0 $K$
References
Data reference
Yoldi, Zuriñe (2018): VIS-NIR reflectance spectra of binary mixtures of particulate CO2 ice (400-800 µm) and regolith simulant JSC Mars-1 in variable amount. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZY_20180216_000
Publications
