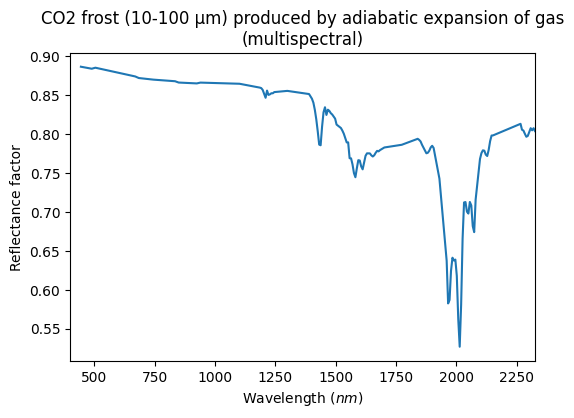

Spectrum preview
Title
CO2 frost (10-100 µm) produced by adiabatic expansion of gas (multispectral)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-04-20 15:24:00 UTC+0000)
Instrument parameters
Instrument
SCITEAS Imaging System - hyperspectral imaging system Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 940.0 $nm$ ; 1102.0 - 1246.0 $nm$ ; 1390.0 - 2326.0 $nm$
Observation geometry
biconical : i=20.0° ; e=30.0° ; az=180.0° ; ph=50.0°
Angle observation mode
fixed angles
Spatial observation mode
roi averaged
Sample preview
Name
CO2 frost (10-100 microns) produced by adiabatic expansion of gas
Texture
loose granular
Thickness
20.0 $\pm$ 2.0 $mm$
Temperature
150.0 $\pm$ 20.0 $K$
References
Data reference
Yoldi, Zuriñe (2018): VIS-NIR reflectance spectra of binary mixtures of CO2 frost (10-100 µm) and fine-grained spherical water ice particles (4.5 µm average diameter). SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZY_20180209_000
Publications
