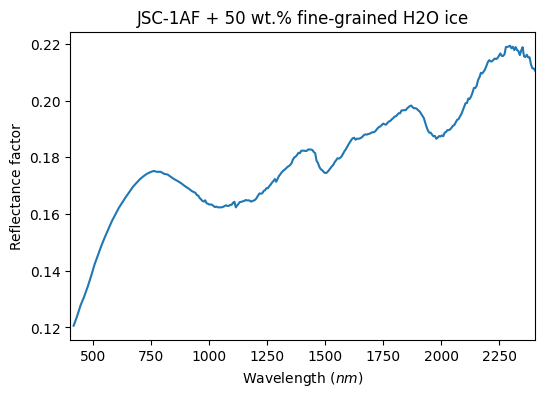

Spectrum preview
Title
JSC-1AF + 50 wt.% fine-grained H2O ice
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-05-01 14:28:06 UTC+0000)
Instrument parameters
Instrument
SCITEAS Imaging System - hyperspectral imaging system Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 940.0 $nm$ ; 946.0 - 1294.0 $nm$ ; 1300.0 - 2404.0 $nm$
Observation geometry
biconical : i=20.0° ; e=30.0° ; az=180.0° ; ph=50.0°
Angle observation mode
fixed angles
Spatial observation mode
roi averaged
Sample preview
Name
Lunar regolith simulant JSC-1AF mixed with 50 wt.% fine-grained spherical water ice particles
Texture
loose granular
Thickness
20.0 $\pm$ 2.0 $mm$
Temperature
200.0 $\pm$ 5.0 $K$
References
Data reference
Yoldi, Zuriñe (2018): VIS-NIR reflectance spectra of binary mixtures between the fine fraction of the JSC Lunar regolith simulant (JSC-1AF) and two types of spherical water ice particles. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZY_20180110_002
