- Title

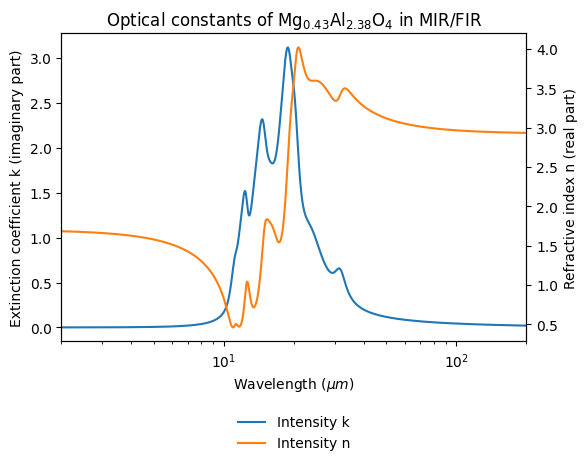

- Optical constants of Mg$_{0.43}$Al$_{2.38}$O$_{4}$ in MIR/FIR
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- optical constants
- Version
- #1 (2021-03-25 13:25:57 UTC+0000)
- Instrument
- BRUKER 113v – reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 2.0 - 25.0 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- BRUKER 113v – reflection Far-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 15.0 - 200.0 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Mg$_{0.43}$Al$_{2.38}$O$_{4}$
- Origin
- laboratory
- Texture
- compact
- Thickness
- 1.0 $mm$
- Temperature
- 300.0 $\pm$ 5.0 $K$
References
- Data reference
- Fabian, Dirk; Posch, Thomas; Mutschke, Harald; Kerschbaum, Franz; Dorschner, Johann (2000): Optical constants of nonstoichiometric spinels in MIR/FIR. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SB_20210324_001
