- Title

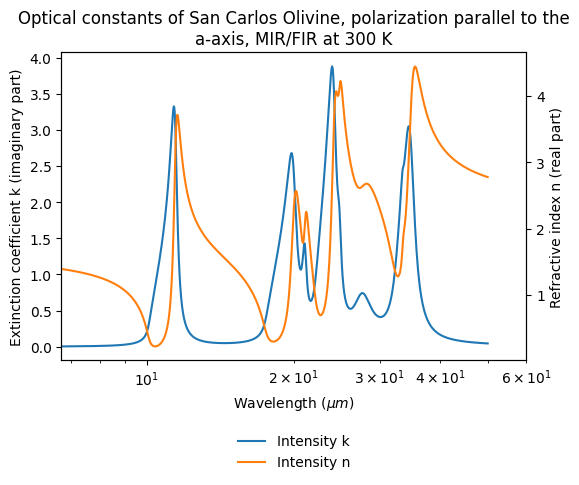

- Optical constants of San Carlos Olivine, polarization parallel to the a-axis, MIR/FIR at 300 K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- optical constants
- Version
- #1 (2020-04-03 08:09:27 UTC+0000)
- Instrument
- BRUKER 113v – reflection Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 6.67 - 25.0 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- BRUKER 113v – reflection Far-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 15.0 - 60.0 ${\mu}m$
- Observation geometry
- specular : i=12.0° ; e=12.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- San Carlos Olivine (C1), surface along the crystallographic a-c plane
- Origin
- natural terrestrial
- Texture
- compact crystal
- Thickness
- 1.4 $mm$
- Temperature
- 300.0 $\pm$ 5.0 $K$
References
- Data reference
- Zeidler, Simon; Mutschke, Harald; Posch, Thomas (2013): T-dependent optical constants of San Carlos Olivine and Burma Ortho-enstatite. SSHADE/DOCCD (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SB_20200403_001
