- Title

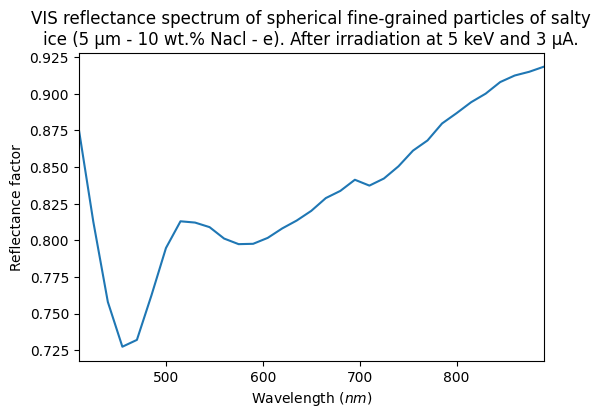

- VIS reflectance spectrum of spherical fine-grained particles of salty ice (5 µm - 10 wt.% Nacl - e). After irradiation at 5 keV and 3 µA.
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2023-07-26 11:23:57+0000 UTC)
- Instrument
- MoHIS - Hyperspectral imaging system Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 410.0 - 890.0 nm
- Observation geometry
- biconical : i=5.0° ; e=0.0° ; az=90.0° ; ph=5.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- roi averaged
- Name
- Fine-grained spherical particles of salty H2O ice (5 µm average diameter, 10 wt.% NaCl, Sample e). Second electron irradiation at 3 µA (5 keV).
- Origin
- laboratory
- Texture
- loose granular
- Thickness
- 9.0 ± 1.0 mm
- Temperature
- 90.0 ± 15.0 K
- Irradiated by
-
- electrons , 5.0 keV.particle−1
References
- Data reference
- Cerubini, Romain (2020): VIS reflectance spectra collected during electron irradiation experiments of salty fine-grained ice particles (spherical, 5 µm average diameter) prepared by freezing solutions of NaCl with different concentrations.. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RC_20200618_000
