- Title

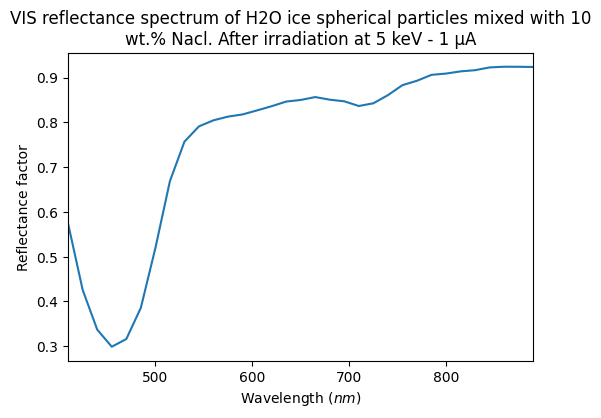

- VIS reflectance spectrum of H2O ice spherical particles mixed with 10 wt.% Nacl. After irradiation at 5 keV - 1 µA
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2023-07-02 15:33:00+0000 UTC)
- Instrument
- MoHIS - Hyperspectral imaging system Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 410.0 - 890.0 nm
- Observation geometry
- biconical : i=5.0° ; e=0.0° ; az=0.0° ; ph=5.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- roi averaged
- Name
- Spherical particles of H2O ice (SPIPA-B type, 67 µm average diameter) intimately mixed with 10 wt.% Nacl particles (sieved to less than 100 µm). After electron irradiation at 5 keV and 1 µA.
- Texture
- loose granular
- Thickness
- 9.0 ± 1.0 mm
- Temperature
- 90.0 ± 15.0 K
- Irradiated by
-
- electrons , 5.0 keV.particle−1
References
- Data reference
- Cerubini, Romain (2020): VIS reflectance spectra collected during electron irradiation experiments of ice particles (spherical, 67 µm average diameter) intimately mixed with NaCl particles (sieved to less than 100 µm). SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RC_20200616_000
