Spectrum preview
Title

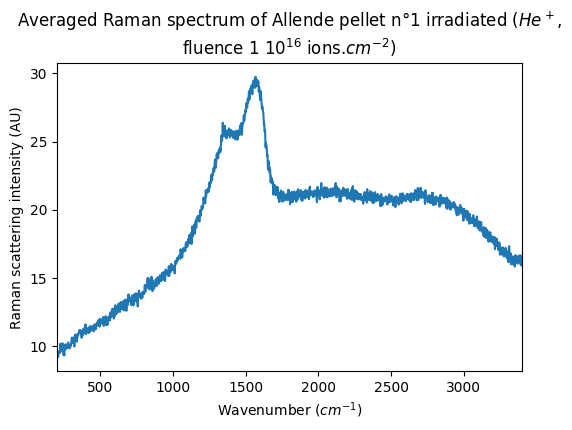

Averaged Raman spectrum of Allende pellet n°1 irradiated (He⁺, fluence 1 1016 ions.cm-2)
Database
Experiment type
laboratory measurement
Spectrum type
Raman scattering intensity
Version
#1 (2017-07-06 19:19:44+0000 UTC)
Instrument parameters
Instrument
Thermo DXR - Raman
Spectral observation mode
spectrum
Valid spectral range(s)
200.0 - 3400.0
Observation geometry
other geometry :
Angle observation mode
fixed angles
Spatial observation mode
averaged
Sample preview
Name
Pellet of Allende powder (n°1)
Texture
compact fine grained
Thickness
200.0 100.0
Temperature
300.0 5.0
Irradiated by
  • atomic ions , 40.0
References
Data reference
Brunetto, Rosario (2013): Ion irradiation (, ) of an Allende meteorite pellet probed by Raman spectroscopy. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_RB_20130101_001
