NIR-MIR reflectance spectra (i = 0°, e = 30°) of powdered Phobos simulant SIM-SAP-1 (OPPS) | GhoSST | SSHADE

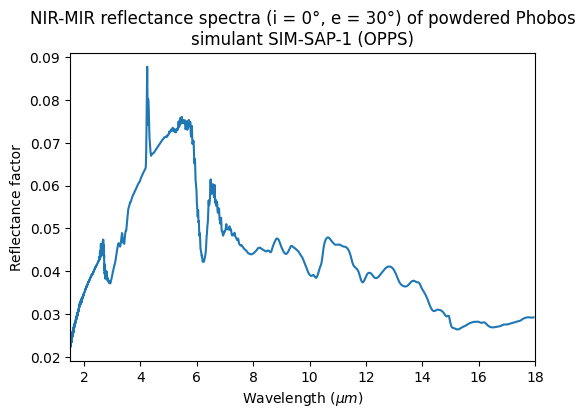

Spectrum preview

Title

NIR-MIR reflectance spectra (i = 0°, e = 30°) of powdered Phobos simulant SIM-SAP-1 (OPPS)

Database

Experiment type

laboratory measurement

Spectrum type

reflectance factor

Version

#1 (2024-07-17 14:05:06+0000 UTC)

Instrument parameters

Instrument: Brucker Vertex 70 – transmission Mid-IR
Spectral observation mode: spectrum
Valid spectral range(s): 1.5 - 18.0 ${\mu}m$
Observation geometry: biconical : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Sample preview

Name: OPPS (Observatory of Paris Phobos Simulant
Texture: loose granular
Thickness: 2.0 $\pm$ 0.1 $mm$
Temperature: 297.0 $\pm$ 1.0 $K$

References

Data reference: Wargnier, Antonin; Poch, Olivier; Beck, Pierre (2022): NIR-MIR reflectance spectra (i=0°, e=30°, az=0°) of phyllosilicates and Phobos simulants (mixed silicates and coals). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20240717_001
