Cu K edge XAS HERFD of Cu metal (2% in BN) at 10K | FAME

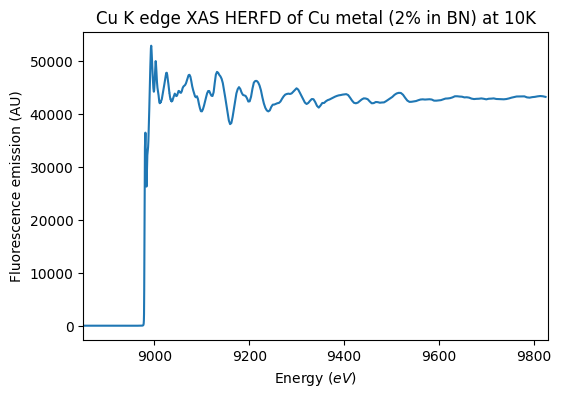

Spectrum preview

Title

Cu K edge XAS HERFD of Cu metal (2% in BN) at 10K

Database

FAME

Experiment type

laboratory measurement

Spectrum type

fluorescence emission

Version

#1 (2023-02-24 13:01:34+0000 UTC)

Instrument parameters

Instrument: High Energy Resolution Fluorescence Detection X-ray Absorption Spectroscopy
Spectral observation mode: spectrum
Valid spectral range(s): 8850.0 - 9830.0 $eV$
Observation geometry: directional :
Angle observation mode: fixed angles
Spatial observation mode: averaged

Sample preview

Name

Pellet of Cu mixed with BN

Origin

commercial

Texture

compact poor grained

Thickness

2.0

\pm

$\pm$ 0.5

m m

$mm$

Temperature

10.0

\pm

$\pm$ 1.0

K

$K$

Pressure

1.0

\pm

$\pm$ 0.001

b a r

$bar$

Fluid

References

Data reference: Proux, Olivier (2023): Cu K edge XAS HERFD of Cu metallic powder (2% weight in BN). SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20230220_001
