- Title

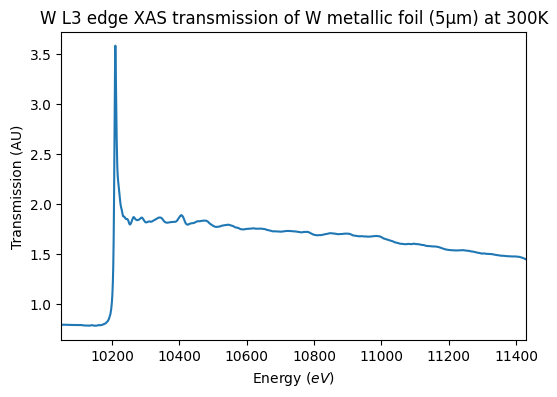

- W L3 edge XAS transmission of W metallic foil (5µm) at 300K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- transmission
- Version
- #1 (2020-12-14 08:25:26 UTC+0000)
- Instrument
- X-ray Absorption Spectroscopy measured in transmission mode
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 10049.2 - 11430.0 $eV$
- Observation geometry
- direct :
- Angle observation mode
- fixed angles
- Spatial observation mode
- averaged
- Name
- W metallic foil
- Origin
- commercial
- Texture
- compact
- Thickness
- 0.005 $mm$
- Temperature
- 300.0 $\pm$ 1.0 $K$
- Pressure
- 1.0 $bar$
References
- Data reference
- Proux, Olivier (2020): W L3 edge XAS transmission of W metallic foil (5µm) at 300K. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20201203_001
