Spectrum preview
Title

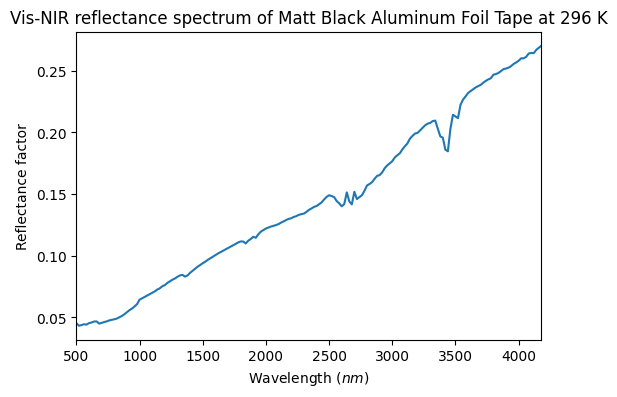

Vis-NIR reflectance spectrum of Matt Black Aluminum Foil Tape at 296 K
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-06-26 09:24:51 UTC+0000)
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
499.99999999999994 - 660.000000000002 $nm$ ; 679.9999999999987 - 1380.0000000000002 $nm$ ; 1400.0000000000002 - 2979.9999999999973 $nm$ ; 3000.0000000000023 - 4179.999999999992 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Matt Black Aluminum Foil Tape at 296 K
Origin
commercial
Texture
compact
Thickness
0.09000000000000001 $\pm$ 0.01 $mm$
Temperature
296.0 $K$
References
Data reference
Schroeder, Stefan; Poch, Olivier; Ferrari, Marco; DeAngelis, Simone (2019): Vis-NIR reflectance spectra of a mixture of Magnetite, NH4-Nontronite, Antigonite and Dolomite, pure, mixed with Water ice, during and after ice sublimation. SSHADE/CSS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20200623_001
Publications
