Spectrum preview
Title

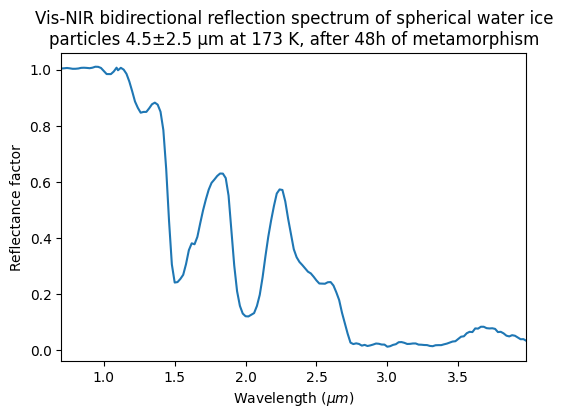

Vis-NIR bidirectional reflection spectrum of spherical water ice particles 4.5±2.5 μm at 173 K, after 48h of metamorphism
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2017-12-02 22:41:42 UTC+0000)
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
0.7 - 2.02 ${\mu}m$ ; 2.02 - 3.98 ${\mu}m$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Water ice spherical particles 4.5±2.5 μm at 173 K
Texture
loose granular
Thickness
3.0 $\pm$ 1.0 $mm$
Temperature
173.0 $K$
References
Data reference
Poch, Olivier; Yoldi, Zuriñe; Jost, Bernhard (2016): Vis-NIR bidirectional reflection spectra of spherical water ice particles for different sizes (2 to 100 µm), temperatures (173 and 223 K) and temporal evolutions. SSHADE/BYPASS+CSS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_OP_20171130_001
