Spectrum preview
Title

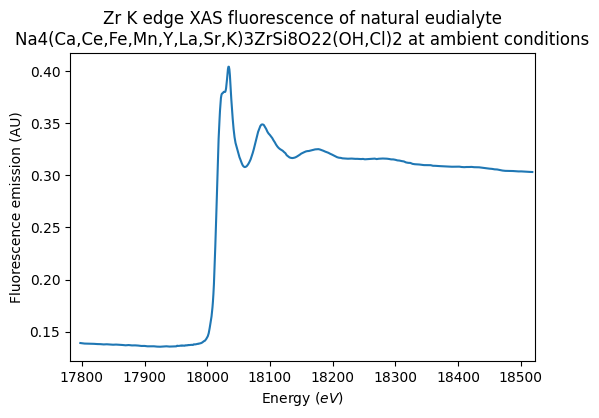

Zr K edge XAS fluorescence of natural eudialyte Na4(Ca,Ce,Fe,Mn,Y,La,Sr,K)3ZrSi8O22(OH,Cl)2 at ambient conditions
Database
Experiment type
laboratory measurement
Spectrum type
fluorescence emission
Version
#1 (2017-12-19 15:39:50 UTC+0000)
Instrument parameters
Instrument
X-ray Absorption Spectroscopy measured in fluorescence mode
Spectral observation mode
spectrum
Valid spectral range(s)
17781.0 - 18523.0 $eV$
Spatial observation mode
single spot
Sample preview
Name
Pellet of natural eudialyte Na4(Ca,Ce,Fe,Mn,Y,La,Sr,K)3ZrSi8O22(OH,Cl)2 mixed with BN
Origin
natural terrestrial
Texture
compact poor grained
Thickness
1.0 $\pm$ 0.5 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
References
Data reference
Louvel, Marion; Malfait, Wim; Sanchez-Valle, Carmen (2009): Zr K edge XAS fluorescence of natural eudialyte Na4(Ca,Ce,Fe,Mn,Y,La,Sr,K)3ZrSi8O22(OH,Cl)2 at ambient conditions. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ML_20171219_002
Publications
