Spectrum preview
Title

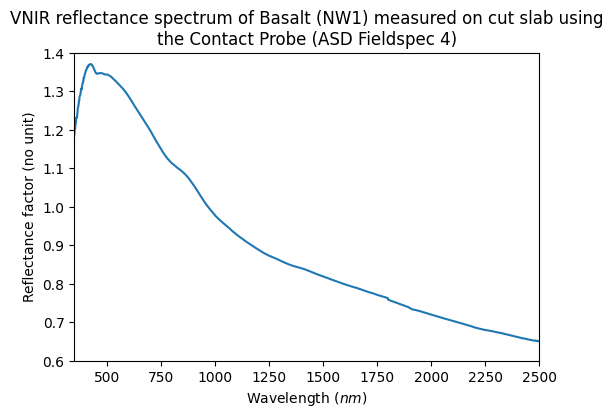

VNIR reflectance spectrum of Basalt (NW1) measured on cut slab using the Contact Probe (ASD Fieldspec 4)
Database
Experiment type
laboratory measurement
Spectrum type
bidirectional reflectance
Version
#1 (2026-03-10 17:36:42+0000 UTC)
Instrument parameters
Instrument
ASD Fieldspec4 – biconical reflection Visible to near-infrared
Spectral observation mode
spectrum
Valid spectral range(s)
350.0 - 1000.0 $nm$ ; 1001.0 - 2500.0 $nm$
Observation geometry
bidirectional : i=45.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Basalt (NW1) cut slab
Texture
compact
Temperature
20.0 $\pm$ 5.0 $^{\circ}C$
References
Data reference
Barthez, Marie (2022): Visible and near-infrared spectra of terrestrial feldspathic volcanic rocks. SSHADE/Mirabelle (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_MB_20260302_0001
