Spectrum preview
Title

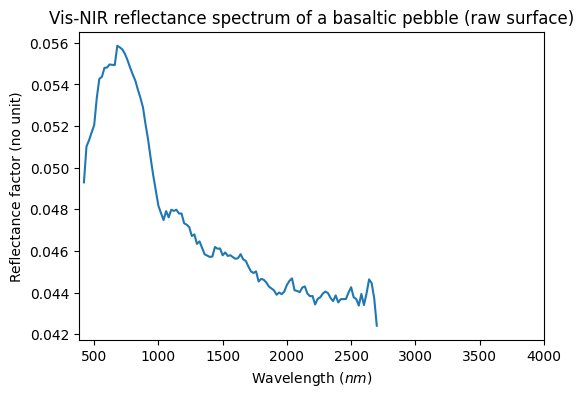

Vis-NIR reflectance spectrum of a basaltic pebble (raw surface)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2022-04-22 12:51:48 UTC+0000)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
380.0 - 660.0 $nm$ ; 680.0 - 1480.0 $nm$ ; 1500.0 - 2980.0 $nm$ ; 3000.0 - 4000.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Basaltic pebble (raw surface)
Origin
natural terrestrial
Texture
compact fine grained
Thickness
20.0 $\pm$ 5.0 $mm$
Temperature
20.0 $\pm$ 10.0 $^{\circ}C$
References
Data reference
Mandon, Lucia; Beck, Pierre (2018): Vis-NIR reflectance spectra of basalts (raw pieces and powders). SSHADE/ROMA (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LM_20220303_BAS
