- Title

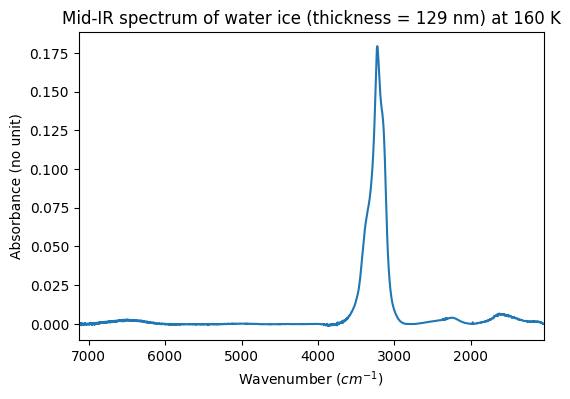

- Mid-IR spectrum of water ice (thickness = 129 nm) at 160 K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorbance
- Version
- #1 (2025-12-19 10:43:38+0000 UTC)
- Instrument
- Bruker 70V - transmisson Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 1048.0 - 7128.0 $cm^{-1}$
- Observation geometry
- direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- thin film H2O ice (initially amorphous and partially cristalized through heating from 50 K to 160 K)
- Origin
- laboratory
- Texture
- compact fine grained
- Thickness
- 129.0 $\pm$ 0.2 $nm$
- Temperature
- 160.0 $\pm$ 1.0 $K$
References
- Data reference
- Moingeon, Audrey; Quirico, Eric; Poch, Olivier; Boduch, Philippe; Domaracka, Alicja; Rothard, Hermann (2024): MIR spectra of a thin film of water ice at temperature from 50 K to 160 K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20251218_001
