Spectrum preview
Title

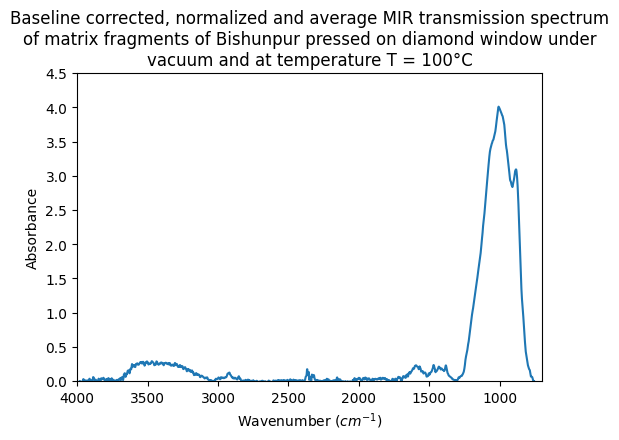

Baseline corrected, normalized and average MIR transmission spectrum of matrix fragments of Bishunpur pressed on diamond window under vacuum and at temperature T = 100°C
Database
Experiment type
laboratory measurement
Spectrum type
absorbance
Version
#1 (2024-09-05 12:45:37 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
600.0 - 4000.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
Bishunpur matrix grains (UOC)
Origin
extraterrestrial
Texture
individual grains
Thickness
15.0 $\pm$ 5.0 ${\mu}m$
Temperature
120.0 $\pm$ 1.0 $^{\circ}C$
References
Data reference
Eschrig, Jolantha; Bonal, Lydie; Vacher, Lionel (2018): Baseline corrected, average and normalized MIR transmission spectra of matrix fragments of UOC chondrites, pressed on diamonds under vacuum and at several temperatures. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20221013_001
