- Title

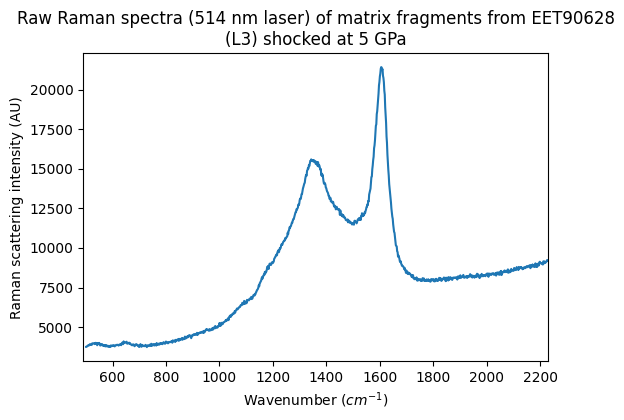

- Raw Raman spectra (514 nm laser) of matrix fragments from EET90628 (L3) shocked at 5 GPa
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- Raman scattering intensity
- Version
- #1 (2024-09-04 09:18:01 UTC+0000)
- Instrument
- Micro-Raman LabRam HR800 - 514 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 490.0 - 2230.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- Matrix fragments of EET90628 shocked at 5 GPa
- Origin
- extraterrestrial
- Texture
- individual grains
- Thickness
- 10.0 $\pm$ 5.0 ${\mu}m$
- Temperature
- 22.0 $\pm$ 2.0 $^{\circ}C$
- Irradiated by
-
- Vis photons , 3.87e-19 $J.particle^{-1}$
References
- Data reference
- Quirico, Eric; Bonal, Lydie (2010): Raman spectra (514 nm, raw and baseline-corrected) of matrix fragments and IOM extracted from unshocked and shocked Murchison (CM2 chondrite) and from shocked EET90628 (L3 chondrite). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20240904_001
- Publications
