Spectrum preview
Title

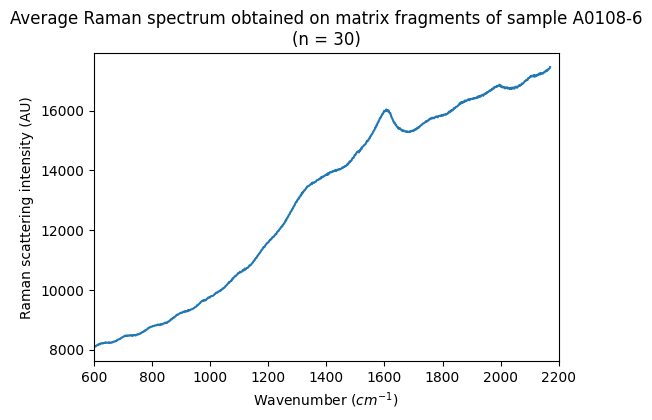

Average Raman spectrum obtained on matrix fragments of sample A0108-6 (n = 30)
Database
Experiment type
laboratory measurement
Spectrum type
Raman scattering intensity
Version
#1 (2022-11-02 13:52:23 UTC+0000)
Instrument parameters
Instrument
Micro-Raman LabRam HR800 - 532 nm
Spectral observation mode
spectrum
Valid spectral range(s)
555.0 - 2170.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
A0108_6
Texture
individual grains
Thickness
10.0 $\pm$ 10.0 ${\mu}m$
Temperature
22.0 $\pm$ 2.0 $^{\circ}C$
Fluid
Irradiated by
  • Vis photons
References
Data reference
Bonal, Lydie; Montagnac, Gilles (2021): Average Raman spectra (λ = 532 nm) obtained on fragments of individual particles and aggregates from Chamber A and Chamber C Ryugu samples (Hayabusa2 mission). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20221102_001
