Spectrum preview
Title

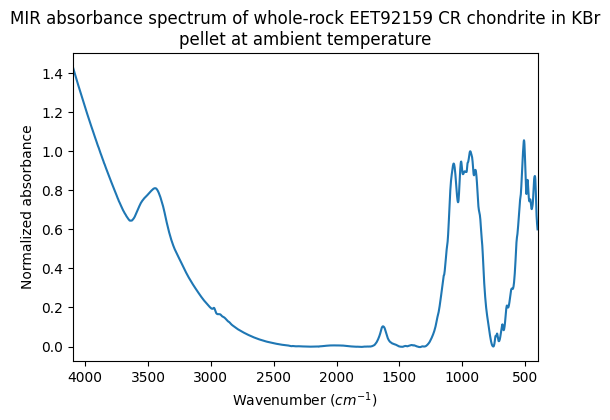

MIR absorbance spectrum of whole-rock EET92159 CR chondrite in KBr pellet at ambient temperature
Database
Experiment type
laboratory measurement
Spectrum type
normalized absorbance
Version
#1 (2022-10-18 14:55:06 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 70v – transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
400.0 - 5000.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
EET92159 KBr Pellet
Origin
extraterrestrial, commercial
Texture
compact poor grained
Thickness
0.8 $\pm$ 0.1 $mm$
Temperature
22.0 $\pm$ 2.0 $^{\circ}C$
References
Data reference
Prestgard, Trygve; Beck, Pierre; Bonal, Lydie (2021): Bulk-rock FTIR MIR spectra of CR chondrites. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20221017_001
