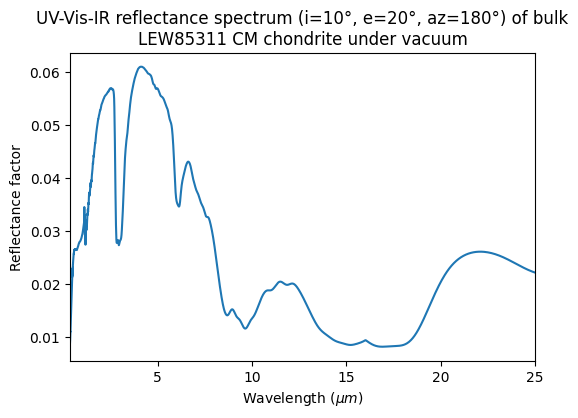

Spectrum preview

Title

UV-Vis-IR reflectance spectrum (i=10°, e=20°, az=180°) of bulk LEW85311 CM chondrite under vacuum

Database

Experiment type

laboratory measurement

Spectrum type

reflectance factor

Version

#1 (2020-01-08 12:51:56+0000 UTC)

Instrument parameters

Instrument: Brucker Vertex 80V - UV-Vis-IR reflection
Spectral observation mode: spectrum
Valid spectral range(s): 0.3 - 0.5 ${\mu}m$ ; 0.5 - 1.1 ${\mu}m$ ; 1.1 - 200.0 ${\mu}m$
Observation geometry: bidirectional : i=10.0° ; e=20.0° ; az=180.0° ; ph=30.0°
Angle observation mode: fixed angles
Spatial observation mode: single spot

Sample preview

Name: powder of bulk LEW85311 CM chondrite
Texture: loose granular
Thickness: 1.0 $\pm$ 0.1 $mm$
Temperature: 297.0 $\pm$ 1.0 $K$

References

Data reference: Beck, Pierre; Garenne, Alexandre; Maturilli, Alessandro (2017): UV-Vis-IR reflectance spectra (i=10°, e=20°, az=180°) of bulk CM and CR chondrites under vacuum. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20200108_001
