Spectrum preview
Title

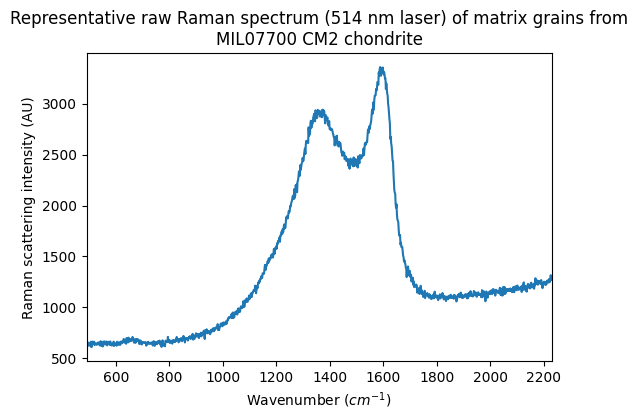

Representative raw Raman spectrum (514 nm laser) of matrix grains from MIL07700 CM2 chondrite
Database
Experiment type
laboratory measurement
Spectrum type
Raman scattering intensity
Version
#1 (2018-07-19 16:00:36 UTC+0000)
Instrument parameters
Instrument
Micro-Raman LabRam HR800 - 514 nm
Spectral observation mode
spectrum
Valid spectral range(s)
490.0 - 2230.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
MIL07700_514 matrix grains
Origin
extraterrestrial
Texture
individual grains
Thickness
10.0 $\pm$ 10.0 ${\mu}m$
Temperature
22.0 $\pm$ 2.0 $^{\circ}C$
Irradiated by
  • Vis photons , 3.87e-19 $J.particle^{-1}$
References
Data reference
Quirico, Eric (2016): Representative raw Raman spectra (514 nm) of matrix grains from CM and C2-ungrouped chondrites. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20180719_001
Publications
