Spectrum preview
Title

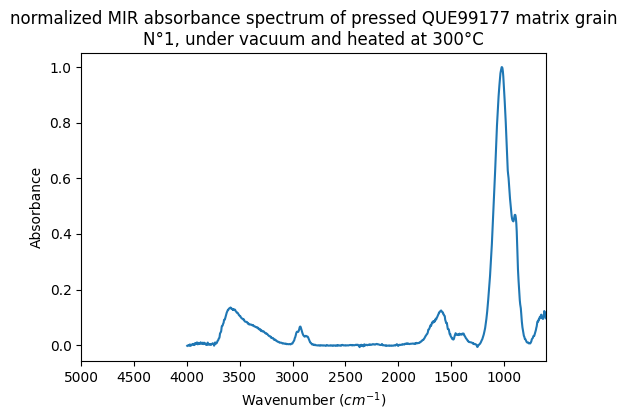

normalized MIR absorbance spectrum of pressed QUE99177 matrix grain N°1, under vacuum and heated at 300°C
Database
Experiment type
laboratory measurement
Spectrum type
absorbance
Version
#1 (2018-10-12 17:04:49 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 70 + Hyperion 3000
Spectral observation mode
spectrum
Valid spectral range(s)
600.0 - 5000.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
QUE99177 matrix grains (CR Chondrite) heated at 300°C
Origin
extraterrestrial
Texture
individual grains
Thickness
15.0 $\pm$ 5.0 ${\mu}m$
Temperature
300.0 $\pm$ 5.0 $^{\circ}C$
References
Data reference
Bonal, Lydie (2011): normalized MIR absorbance spectrum of pressed QUE99177 matrix grain N°1, under vacuum and heated at 300°C. Version 1. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data.
Publications
