Spectrum preview
Title

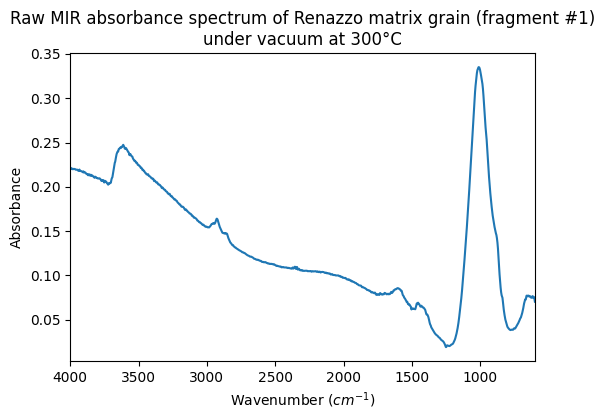

Raw MIR absorbance spectrum of Renazzo matrix grain (fragment #1) under vacuum at 300°C
Database
Experiment type
laboratory measurement
Spectrum type
absorbance
Version
#1 (2017-08-02 11:13:21 UTC+0000)
Instrument parameters
Instrument
Brucker Vertex 70 + Hyperion 3000 – micro-transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
600.0 - 4000.0 $cm^{-1}$
Spatial observation mode
single spot
Sample preview
Name
RENAZZO matrix grains (CR Chondrite) heated at 300°C
Origin
extraterrestrial
Texture
individual grains
Thickness
15.0 $\pm$ 5.0 ${\mu}m$
Temperature
300.0 $\pm$ 5.0 $^{\circ}C$
References
Data reference
Bonal, Lydie (2011): Mid-IR absorbance spectra of Renazzo matrix grains under vacuum at different temperatures. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20170731_005
Publications
