Spectrum preview
Title

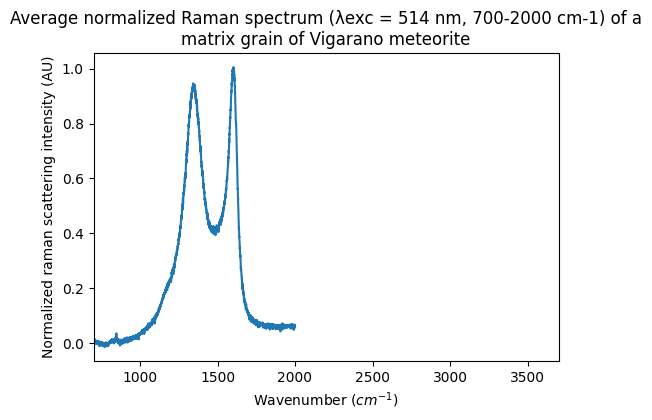

Average normalized Raman spectrum (λexc = 514 nm, 700-2000 cm-1) of a matrix grain of Vigarano meteorite
Database
Experiment type
laboratory measurement
Spectrum type
normalized Raman scattering intensity
Version
#1 (2017-07-04 10:13:32 UTC+0000)
Instrument parameters
Instrument
LabRAM HR800 micro-Raman Vis - 514 nm
Spectral observation mode
spectrum
Valid spectral range(s)
700.0 - 3700.0 $cm^{-1}$
Observation geometry
other geometry :
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Vigarano_514 meteorite grains
Origin
extraterrestrial
Texture
individual grains
Thickness
10.0 $\pm$ 10.0 ${\mu}m$
Temperature
22.0 $\pm$ 2.0 $^{\circ}C$
Irradiated by
  • Vis photons , 3.87e-19 $J.particle^{-1}$
  • Vis photons , 3.87e-19 $J.particle^{-1}$
References
Data reference
Bonal, Lydie (2003): Raman spectra (λ = 514 nm) of matrix grains of CV meteorites. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_LB_20140114_001
Publications
