Gd L3 edge XAS transmission of Gd2(CO3)3.xH2O at ambient conditions | FAME | SSHADE

Processing math: 100%

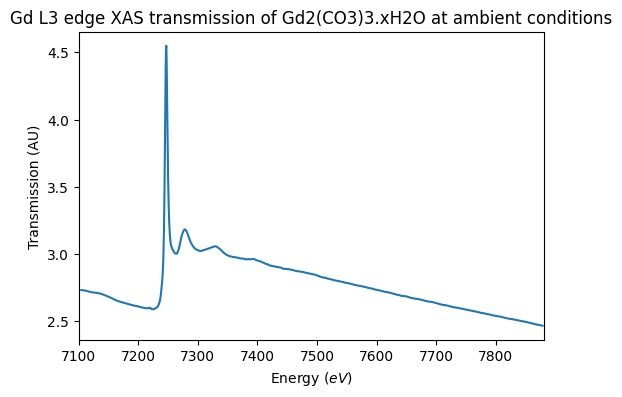

Spectrum preview

Title

Gd L3 edge XAS transmission of Gd2(CO3)3.xH2O at ambient conditions

Database

Experiment type

laboratory measurement

Spectrum type

transmission

Version

#1 (2021-12-15 10:00:51+0000 UTC)

Instrument parameters

Instrument: X-ray Absorption Spectroscopy measured in transmission mode
Spectral observation mode: spectrum
Valid spectral range(s): 7100.0 - 7880.0 $eV$
Observation geometry: direct :
Angle observation mode: fixed angles
Spatial observation mode: averaged

Sample preview

Name: Pellet of Gd2(CO3)3.xH2O mixed with BN
Origin: commercial
Texture: compact poor grained
Thickness: 2.0 $\pm$ 0.5 $mm$
Temperature: 25.0 $\pm$ -268.1 $^{\circ}C$
Pressure: 1.0 $bar$

References

Data reference: Louvel, Marion; Etschmann, Barbara; Brugger, Joel (2018): Gd L3 edge XAS transmission and XAS fluorescence of Gd standards for studies of hydrothermal fluids and rare metals deposits. SSHADE/FAME (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_JB_20182211_002
