- Title

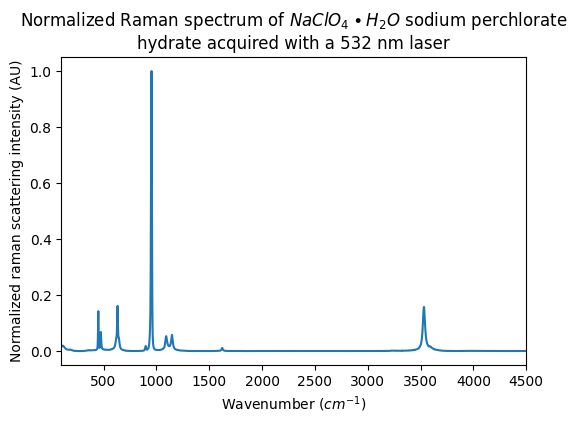

- Normalized Raman spectrum of NaClO4 • H2O sodium perchlorate hydrate acquired with a 532 nm laser
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- normalized Raman scattering intensity
- Version
- #1 (2022-04-12 12:35:20+0000 UTC)
- Instrument
- Micro-Raman LabRam HR800 - 532 nm
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 100.0 - 4500.0
- Observation geometry
- directional-conical :
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- Sodium perchlorate hydrate
- Origin
- commercial
- Texture
- compact crystal
- Temperature
- 22.0 1.0
References
- Data reference
- Montagnac, Gilles (2000): Raman spectra of some chlorate minerals. SSHADE/REAP (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_GM_20220122
- Publications
