Spectrum preview
Title

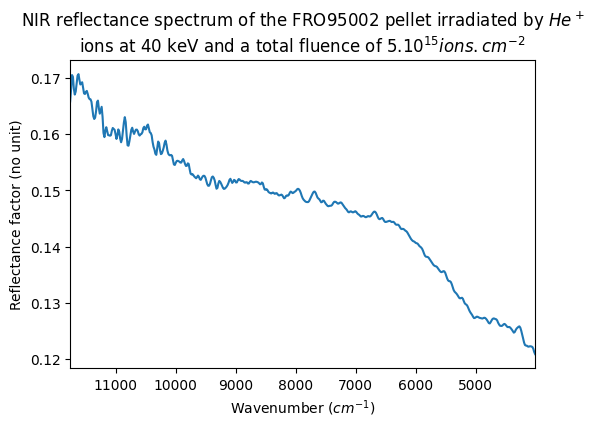

NIR reflectance spectrum of the FRO95002 pellet irradiated by $He^+$ ions at 40 keV and a total fluence of $5.10^{15} ions.cm^{-2}$
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2018-12-02 17:36:53 UTC+0000)
Instrument parameters
Instrument
Bruker Tensor - reflection Near-IR
Spectral observation mode
spectrum
Valid spectral range(s)
4011.41 - 11756.5 $cm^{-1}$
Observation geometry
bidirectional : i=20.0° ; e=15.0° ph=15.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pellet of FRO95002 powder
Texture
compact fine grained
Thickness
200.0 $\pm$ 100.0 ${\mu}m$
Temperature
300.0 $\pm$ 5.0 $K$
Irradiated by
  • atomic ions , 40.0 $keV.particle^{-1}$
References
Data reference
Lantz, Cateline (2015): Ion irradiation ($He^+$) of a FRO95002 meteorite pellet probed by NIR spectroscopy. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CL_20181202_01
Publications
