Spectrum preview
Title

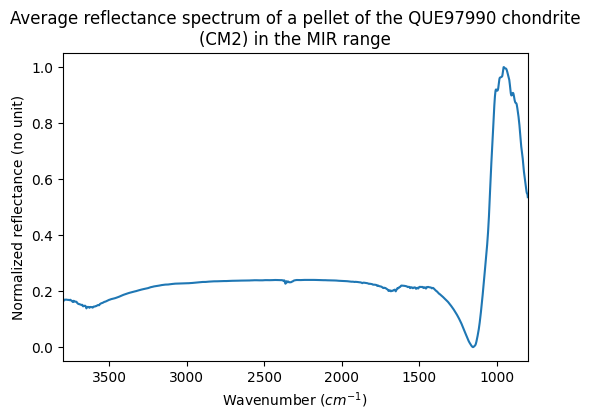

Average reflectance spectrum of a pellet of the QUE97990 chondrite (CM2) in the MIR range
Database
Experiment type
laboratory measurement
Spectrum type
normalized reflectance
Version
#1 (2022-05-30 13:59:03 UTC+0000)
Instrument parameters
Instrument
SMIS Cary 670 - confocal reflection Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
800.0 - 3800.0 $cm^{-1}$
Observation geometry
direct :
Angle observation mode
N/A
Spatial observation mode
averaged
Sample preview
Name
QUE97990 pellet
Texture
compact fine grained
Thickness
300.0 $\pm$ 100.0 ${\mu}m$
Temperature
300.0 $\pm$ 5.0 $K$
Pressure
1.0 $atm$
References
Data reference
Lantz, Cateline; Brunetto, Rosario; Baklouti, Donia; Dionnet, ZĂ©lia; Rubino, Stefano; Arribard, Yann (2018): MIR reflectance spectra of different samples of carbonaceous chondrites (pellets and fragments). SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CL_20180316_01
Publications
