Spectrum preview
Title

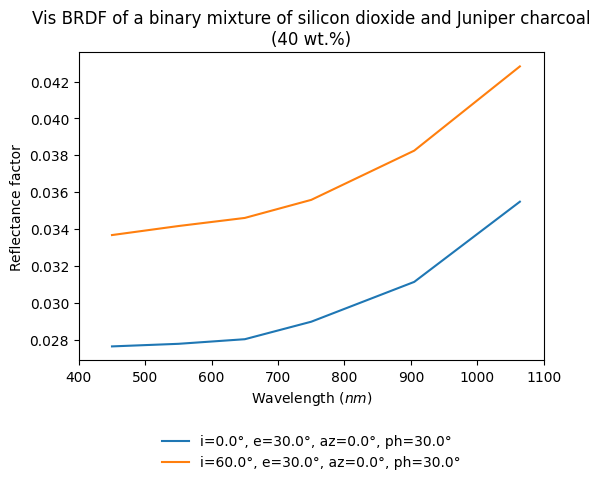

Vis BRDF of a binary mixture of silicon dioxide and Juniper charcoal (40 wt.%)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2023-11-24 16:00:12 UTC+0000)
Instrument parameters
Instrument
PHIRE-2 - Bidirectional reflectance Vis-NIR
Spectral observation mode
multi wavelengths
Valid spectral range(s)
400.0 - 1100.0 $nm$
Observation geometry
bidirectional :
Angle observation mode
three variable angles
Spatial observation mode
single spot
Sample preview
Name
Binary mixture of silicon dioxide and juniper charcoal (40 wt.%)
Texture
loose granular
Thickness
20.0 $\pm$ 1.0 $mm$
Temperature
293.0 $\pm$ 2.0 $K$
References
Data reference
Feller, Clement (2020): Vis BRDF of binary mixtures of silicon dioxide (SiO2) particles (0.5 - 10 µm) and Juniper charcoal particles (less than 50 µm). SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_CF_20200723_000
