Spectrum preview
Title

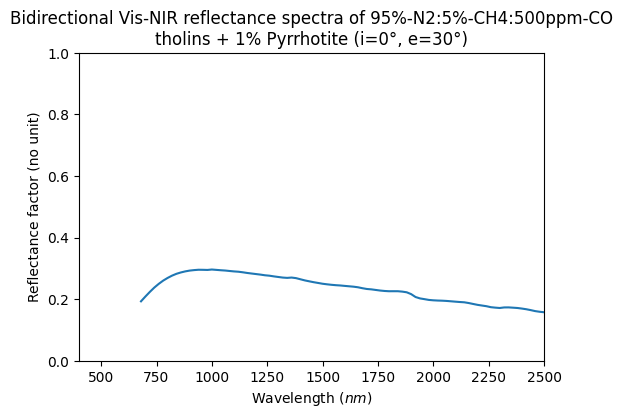

Bidirectional Vis-NIR reflectance spectra of 95%-N2:5%-CH4:500ppm-CO tholins + 1% Pyrrhotite (i=0°, e=30°)
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-12-31 20:33:56 UTC+0000)
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
680.0 - 1380.0 $nm$ ; 1400.0 - 2500.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Tholins LATMOS 95%-N2:5%-CH4:500ppm-CO + 1% Pyrrhotite
Origin
natural terrestrial
Texture
pulverulent
Thickness
6.0 $\pm$ 0.5 $mm$
Temperature
295.0 $\pm$ 2.0 $K$
References
Data reference
Fayolle, Marie; Quirico, Eric; Potin, Sandra (2018): Bidirectional Vis-NIR reflectance spectra of two tholins samples (+ mixtures with pyrrhotite) at various illumination-observation geometries (i=0°,30°,60° - e= -70° to 70°) and their extracted single scattering albedo and optical constants spectra. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20201201_001
