Spectrum preview
Title

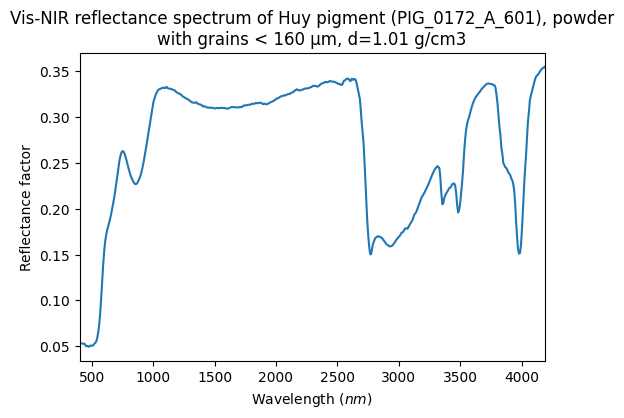

Vis-NIR reflectance spectrum of Huy pigment (PIG_0172_A_601), powder with grains < 160 µm, d=1.01 g/cm3
Database
Experiment type
laboratory measurement
Spectrum type
reflectance factor
Version
#1 (2020-08-15 14:28:19 UTC+0000)
Instrument parameters
Instrument
SHADOWS Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
402.0 - 422.0 $nm$ ; 426.0 - 666.0 $nm$ ; 670.0 - 802.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Instrument parameters
Instrument
SHINE Spectro-Gonio bidirectional reflection Vis-NIR
Spectral observation mode
spectrum
Valid spectral range(s)
806.0 - 1426.0 $nm$ ; 1430.0 - 3198.0 $nm$ ; 3202.0 - 4186.0 $nm$
Observation geometry
bidirectional : i=0.0° ; e=30.0° ; az=0.0° ; ph=30.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Pigment Huy (PIG_0172_A_601), powder (grains inf. 160µm)
Texture
pulverulent
Temperature
296.3 $\pm$ 0.5 $K$
References
Data reference
Schmitt, Bernard; Chalmin-Aljanabi, Emilie; Chassin de Kergommeaux, Aurélie (2019): Vis-NIR reflectance spectra of Huy pigments (PIG_0172_A): blocks, powders, plots and painted matters. SSHADE/PIG (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200813_100
