- Title

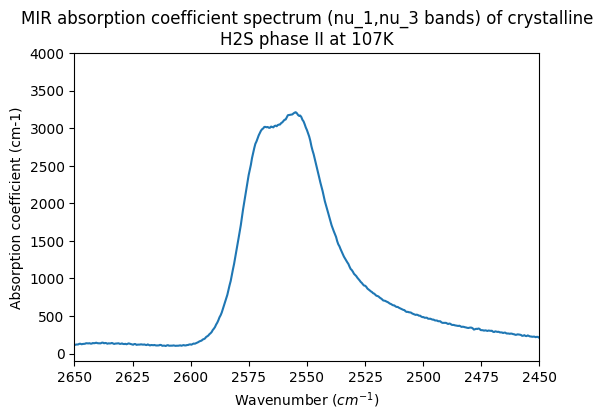

- MIR absorption coefficient spectrum (nu_1,nu_3 bands) of crystalline H2S phase II at 107K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- absorption coefficient
- Version
- #1 (2020-02-04 09:06:22 UTC+0000)
- Instrument
- Nicolet 800 – transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 2200.0 - 2800.0 $cm^{-1}$
- Observation geometry
- direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- H2S phase II
- Origin
- laboratory
- Texture
- compact fine grained
- Temperature
- 107.0 $\pm$ 0.5 $K$
- Fluid
-
- ultra high vacuum - ~1e-9 mbar , 100.0%
References
- Data reference
- Schmitt, Bernard (1991): MIR absorption coefficient spectra of H2S (nu_1,nu_3 bands) in 3 different phases (amorphous, III, II) and diluted in SO2 ice. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20200202_001
