- Title

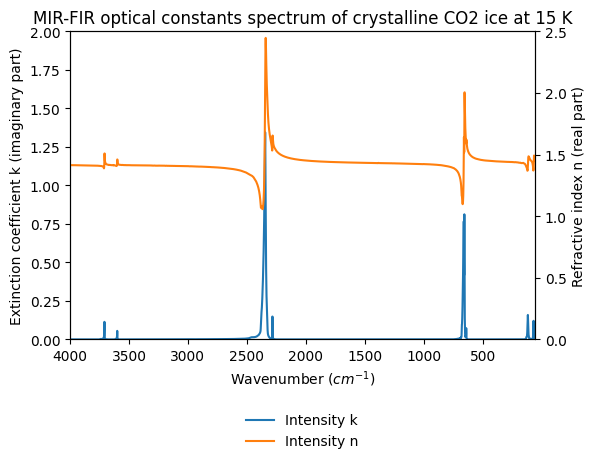

- MIR-FIR optical constants spectrum of crystalline CO2 ice at 15 K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- optical constants
- Version
- #1 (2017-11-17 17:16:56 UTC+0000)
- Instrument
- Nicolet 800 – transmission Far-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 54.0 - 630.0 $cm^{-1}$
- Observation geometry
- direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Instrument
- Nicolet 800 – transmission Mid-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 630.0 - 4800.0 $cm^{-1}$
- Observation geometry
- direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- single spot
- Name
- CO2 crystalline ice - deposition 15K
- Origin
- laboratory
- Texture
- compact fine grained
- Temperature
- 15.0 $\pm$ 0.5 $K$
- Fluid
-
- ultra high vacuum - ~1e-9 mbar , 100.0%
References
- Data reference
- Trotta, Frederic; Schmitt, Bernard (1996): Mid-IR and Far-IR optical constants of crystalline CO2 ice at 15 K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20130125_001
