- Title

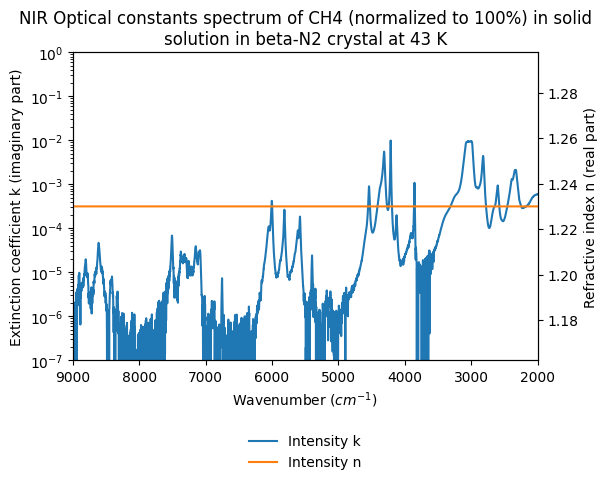

- NIR Optical constants spectrum of CH4 (normalized to 100%) in solid solution in beta-N2 crystal at 43 K
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- optical constants
- Version
- #1 (2018-02-07 10:26:31 UTC+0000) [obsolete version]
A more recent version exists:
Version #2
[corrected continum optical constants spectrum of CH4 in solid solution in alpha-N2 at 43K (near-IR)]
- Instrument
- Nicolet 800 – transmission Near-IR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 2000.0 - 10000.0 $cm^{-1}$
- Spatial observation mode
- single spot
- Name
- CH4 in beta-N2 crystalline
- Origin
- laboratory
- Texture
- compact coarse grained
- Temperature
- 43.0 $\pm$ 0.3 $K$
- Fluid
References
- Data reference
- Quirico, Eric; Schmitt, Bernard (1992): NIR optical constant spectra of CH4 in solid solution in alpha and beta-N2 phases at 5 different temperatures (35K - 43K). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20130103_003
