Experiment
Title

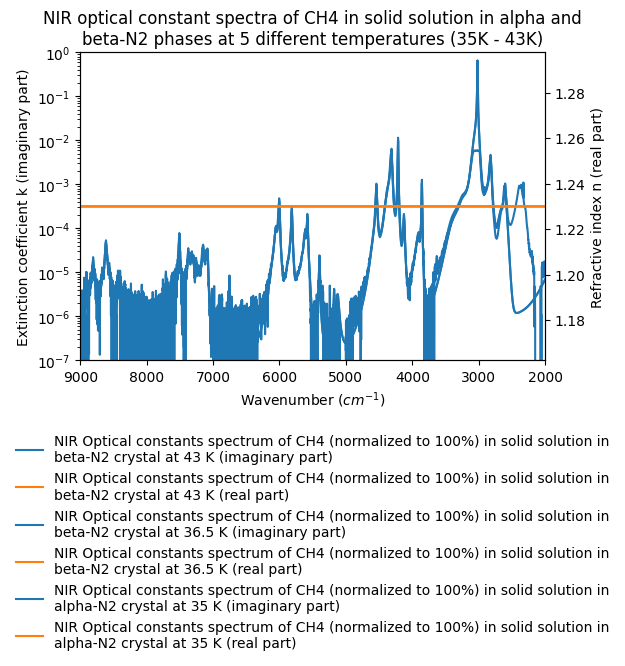

NIR optical constant spectra of CH4 in solid solution in alpha and beta-N2 phases at 5 different temperatures (35K - 43K)
DOI
10.26302/SSHADE/EXPERIMENT_BS_20130103_003
Data reference
Quirico, Eric; Schmitt, Bernard (1992): NIR optical constant spectra of CH4 in solid solution in alpha and beta-N2 phases at 5 different temperatures (35K - 43K). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20130103_003
Publications
Type(s)
laboratory measurement
Description
NIR optical constant spectra of CH4 in solid solution in two N2 ice phases: Beta-N2 phases at 43, 41, 38 and 36.5K. Changed to alpha-N2 phase at 35K
Number of spectra
5
Variable type(s)
  • temperature
  • sample phase
Instrument
Nicolet 800 – transmission Near-IR
Sample holder
Stainless steel closed cell 10 mm thick with MgF2 windows cooled by He cryostat in UHV chamber with 2 KBr windows
Standard medium
vacuum
Observation mode
spectrum
Spectral range type(s)
NIR
Valid spectral range(s)
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge
#1 2000.0 - 10000.0 0.4821314127 0.92 0.05
Comments
C axis possibly perpendicular to beam axis
Illumination
Type of polarization
no
Observation
Type of polarization
no
Comments
possibly partly polarized beam by beamsplitter
Observation mode
single spot
Image size
2.5 x 2.5 $mm$
Spatial resolution
2.5 ${\pm}$ 0.5 $mm$
Comments
circular spot located in center of a monocrystal
Date begin
1992-01-01

Versions

Release date
2018-02-27 11:44:05 UTC+0000
Version (Date)
#2 (2018-02-07 14:34:05 UTC+0000, Updated: 2018-10-23 04:12:44 UTC+0000)
Older version(s)
