- Title

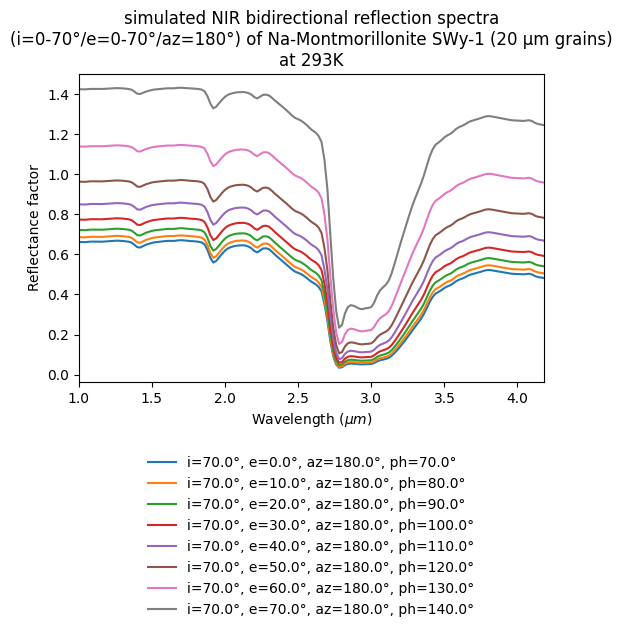

- simulated NIR bidirectional reflection spectra (i=0-70°/e=0-70°/az=180°) of Na-Montmorillonite SWy-1 (20 µm grains) at 293K
- Database
- Experiment type
- numerical modeling
- Spectrum type
- reflectance factor
- Version
- #1 (2017-07-04 10:13:32 UTC+0000)
- Instrument
- Spectrimag - bidirectional reflection UV-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 1.0 - 4.18 ${\mu}m$
- Observation geometry
- bidirectional :
- Angle observation mode
- two variable angles
- Spatial observation mode
- single spot
- Name
- simulated Montmorillonite SWy-1 - 20 µm grains
- Origin
- simulated
- Texture
- earthy
- Thickness
- inf $mm$
- Temperature
- 293.0 $\pm$ 5.0 $K$
- Fluid
-
- $N_2$ , 100.0 $\pm$ 0.1%
References
- Data reference
- Pommerol, Antoine; Schmitt, Bernard (2007): simulated NIR bidirectional reflection spectra (i=0-70°/e=0-70°/az=180°) of Na-Montmorillonite SWy-1 (20 µm grains) at 293K. SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20121218_001
