Spectrum preview
Title

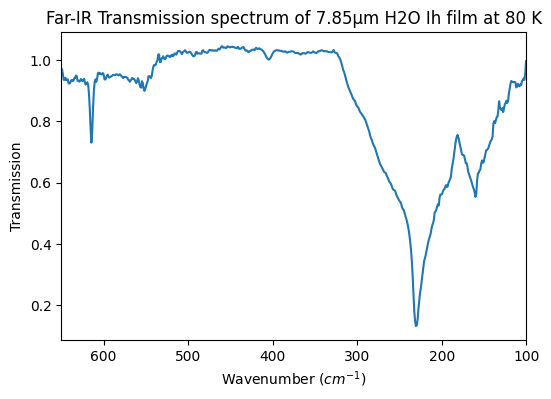

Far-IR Transmission spectrum of 7.85µm H2O Ih film at 80 K
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2017-11-17 17:16:56 UTC+0000)
Instrument parameters
Instrument
Nicolet 800 – transmission Far-IR
Spectral observation mode
spectrum
Valid spectral range(s)
100.0 - 650.0 $cm-1$
Observation geometry
direct : i=0.0° ; e=180.0° ; az=0.0° ; ph=180.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
H2O crystalline ice - deposition 143K - film 7.85µm
Origin
laboratory
Texture
compact fine grained
Thickness
7.85 $\pm$ 0.08 ${\mu}m$
Temperature
80.0 $\pm$ 0.5 $K$
References
Data reference
Schmitt, Bernard (1991): Far-IR Transmission spectra of crystalline Ih H2O ice at different temperatures (80K to 160K). SSHADE/GhoSST (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_BS_20120923_001
