- DOI
- 10.26302/SSHADE/EXPERIMENT_ZED_20250228_01
- Data reference
- Henault, Elsa (2021): NIR spectra of CH3OH:H2O mixtures at 35 and 60 K irradiated with H+ 30 keV. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20250228_01
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

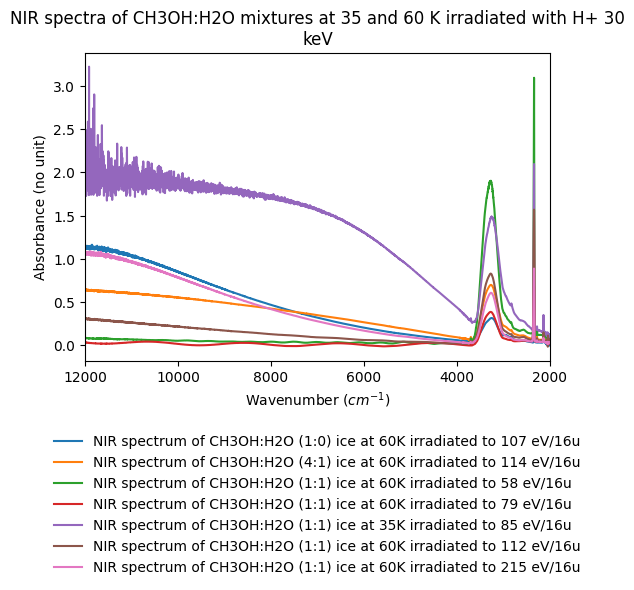

- NIR spectra of CH3OH:H2O mixtures at 35 and 60 K irradiated with H+ 30 keV.
- Number of spectra
- 7
- Variable type(s)
-
- irradiation dose
- sample composition
- Comments
- We irradiated CH3OH:H2O ices mixtures on the SIDONIE isotope separator at IJCLab (Orsay, France) using $H^+$ ions at 30 keV.Reference spectra were collected on the MgF2 substrat. Spectra are not corrected for interference fringes. Spectra are corrected for athmospheric contribution (CO2 and H2O)
- Laboratory
- Institut d'Astrophysique Spatiale (IAS)
- Instrument
- Bruker Tensor - transmission Near-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 2000.0 - 12000.0 1.0 0.5
Definition: incidence and emergence angles are positive with origin at nadir. Emergence angle in transmission is larger than 90° (=180°-i).
- Observation geometry
- direct
- Observation mode
- fixed angles
- Incidence angle
- 10.0°
- Emergence angle
- 170.0°
- Azimuth angle
- 180.0°
- Phase angle
- 180.0°
- Observation mode
- single spot
- Date begin
- 2021-11-04
Versions
- Release date
- 2025-03-18 10:30:01+0000 UTC
- Version (Date)
- #1 (2025-03-18 10:30:01+0000 UTC, Updated: 2025-03-18 10:30:01+0000 UTC)
