- DOI
- 10.26302/SSHADE/EXPERIMENT_ZED_20230704_01
- Data reference
- Bott, Nicolas; Brunetto, Rosario (2023): NIR reflectance spectra of Mercury minerals analogs heated up to 673 K. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20230704_01
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

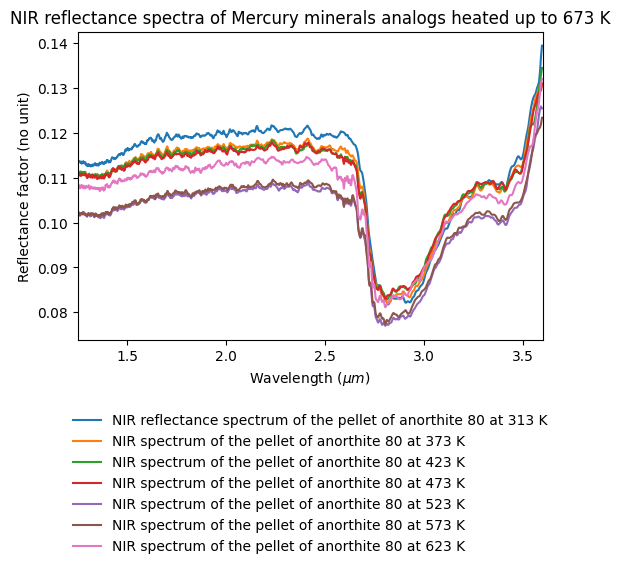

- NIR reflectance spectra of Mercury minerals analogs (anorthite 80 and synthetic volcanic glasses) heated by 50K step up to 673 K.
- Number of spectra
- 28
- Variable type(s)
-
- sample composition
- sample texture
- temperature
- Laboratory
- Institut d'Astrophysique Spatiale (IAS)
- Instrument
- SMIS Cary 670 - confocal reflection Mid-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 1.25 - 3.6 0.04 0.01
- Observation geometry
- confocal
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 0.0°
- Azimuth angle
- 180.0°
- Phase angle
- 0.0°
- Resolution illumination
- 12.0°
- Resolution observation
- 12.0°
- Observation mode
- single spot
- Objective type
- x15
- Image size
- 200.0 x 200.0 ${\mu}m$
- Comments
- The resolution changes with the wavelength according to the Abbe's equation.
- Date begin
- 2023-01-01
Versions
- Release date
- 2023-07-10 14:18:59 UTC+0000
- Version (Date)
- #1 (2023-07-10 14:18:59 UTC+0000, Updated: 2023-07-26 14:46:08 UTC+0000)
