- DOI
- 10.26302/SSHADE/EXPERIMENT_ZED_20230524_01
- Data reference
- Maupin, Romain; Djouadi, Zahia (2020): Vis-NIR reflectance spectra of 14 stratospheric IDPs particles. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20230524_01
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

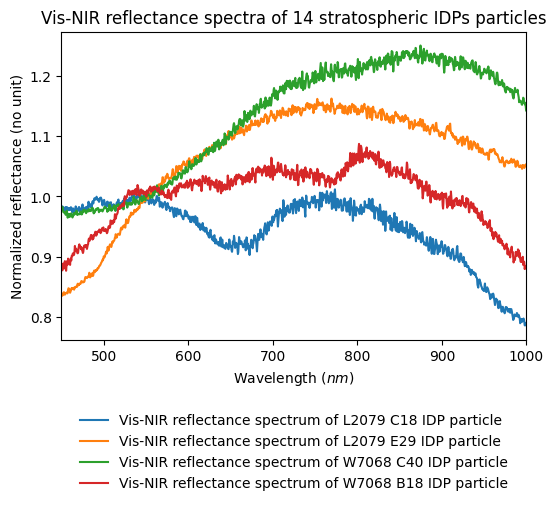

- Vis-NIR spectroscopy of 14 stratospheric IDPs in reflectance.
- Number of spectra
- 14
- Variable type(s)
-
- sample composition
- Laboratory
- Institut d'Astrophysique Spatiale (IAS)
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis, NIR
- Valid spectral range(s)
-
Min - Max ($nm$) Sampling ($nm$) Resolution ($nm$) Position accuracy ($nm$) Absorption edge #1 450.0 - 1000.0 0.46 0.02 1.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 45.0°
- Emergence angle
- 0.0°
- Azimuth angle
- 90.0°
- Phase angle
- 45.0°
- Resolution illumination
- 5.0°
- Resolution observation
- 2.0°
- Observation mode
- averaged
- Spots number
- 20
- Objective type
- x32
- Image size
- 10.0 x 10.0 ${\mu}m$
- Spatial resolution
- 2.0 ${\mu}m$
- Comments
- 20 successive measurements with rotations of 18° between each ((azimuthal angle, varying between 0° and 360°), were average to obtain the reflectance spectrum of an isolated particle. The spot size was adapted according to the size of each samples.
- Date begin - end
- 2020-01-01 - 2020-01-01
Versions
- Release date
- 2023-06-22 10:07:45+0000 UTC
- Version (Date)
- #1 (2023-06-22 10:07:45+0000 UTC, Updated: 2023-06-22 10:07:45+0000 UTC)
