- DOI
- 10.26302/SSHADE/EXPERIMENT_ZED_20230103_01
- Data reference
- Rubino, Stefano; Brunetto, Rosario; Lantz, Cateline (2020): MIR spectra of phyllosilicate pellets irradiated by He+ and Ar+ ions. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZED_20230103_01
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

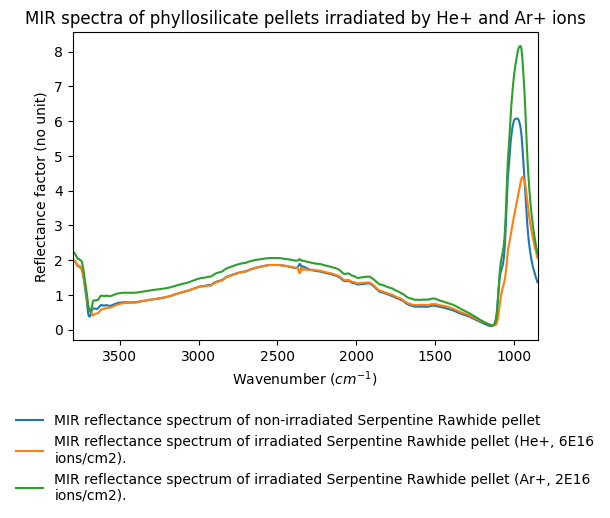

- MIR spectra of phyllosilicate pellets irradiated by $Ar^+$ or $He^+$.
- Number of spectra
- 9
- Variable type(s)
-
- sample composition
- irradiation type
- Comments
- We irradiated pellets of different terrestrial phyllosilicates on the SIDONIE isotope separator at IJCLab (Orsay, France) using $Ar^+$ ions or $He^+$ . Samples were mounted vertically and ion irradiation was performed at normal incidence. For each sample, we measured, besides the "virgin" spectrum, two separate spectra corresponding to irradiation by $Ar^+$ and $He^+$.
- Laboratory
- Institut d'Astrophysique Spatiale (IAS)
- Instrument
- SMIS Cary 670 - confocal reflection Mid-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- MIR
- Valid spectral range(s)
-
Min - Max ($cm^{-1}$) Sampling ($cm^{-1}$) Resolution ($cm^{-1}$) Position accuracy ($cm^{-1}$) Absorption edge #1 850.0 - 3800.0 4.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- specular
- Observation mode
- fixed angles
- Incidence angle
- 0.0°
- Emergence angle
- 0.0°
- Azimuth angle
- 180.0°
- Phase angle
- 0.0°
- Comments
- numerical aperture of 0.62
- Observation mode
- rastered
- Spots number
- 16384
- Objective type
- X15
- Pixels separation
- 5.5 x 5.5 ${\mu}m$
- Pixels number
- 128 x 128
- Image size
- 704.0 x 704.0 ${\mu}m$
- Date begin
- 2020-02-04
Versions
- Release date
- 2024-04-10 15:36:00 UTC+0000
- Version (Date)
- #1 (2024-04-10 15:36:00 UTC+0000, Updated: 2024-04-10 15:36:00 UTC+0000)
