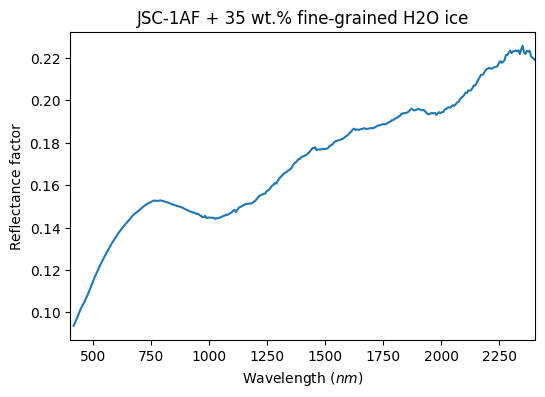

- Title
- JSC-1AF + 35 wt.% fine-grained H2O ice
- Database
- Experiment type
- laboratory measurement
- Spectrum type
- reflectance factor
- Version
- #1 (2023-05-01 14:28:06 UTC+0000)
- Instrument
- Hyperspectral imaging system Vis-NIR
- Spectral observation mode
- spectrum
- Valid spectral range(s)
- 400.0 - 940.0 $nm$ ; 946.0 - 1294.0 $nm$ ; 1300.0 - 2404.0 $nm$
- Observation geometry
- biconical : i=20.0° ; e=30.0° ; az=180.0° ; ph=50.0°
- Angle observation mode
- fixed angles
- Spatial observation mode
- roi averaged
- Name
- Lunar regolith simulant JSC-1AF mixed with 35 wt.% fine-grained spherical water ice particles
- Texture
- loose granular
- Thickness
- 20.0 $\pm$ 2.0 $mm$
- Temperature
- 200.0 $\pm$ 5.0 $K$
References
- Data reference
- Yoldi, Zuriñe (2018): VIS-NIR reflectance spectra of binary mixtures between the fine fraction of the JSC Lunar regolith simulant (JSC-1AF) and two types of spherical water ice particles. SSHADE/BYPASS (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_ZY_20180110_002
- Publications
