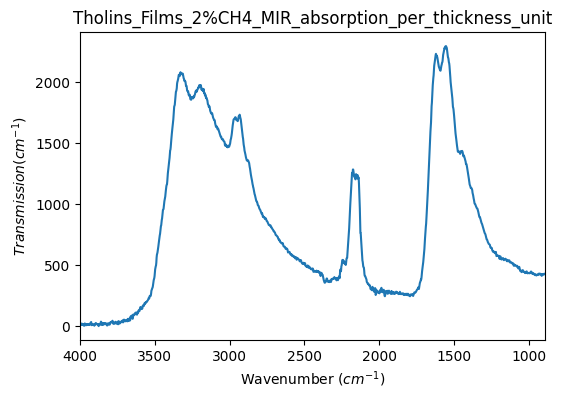

Spectrum preview
Title
Tholins_Films_2%CH4_MIR_absorption_per_thickness_unit
Database
Experiment type
laboratory measurement
Spectrum type
transmission
Version
#1 (2018-05-04 11:31:01 UTC+0000)
Instrument parameters
Instrument
SMIS Magna 860 - transmission Mid-IR
Spectral observation mode
spectrum
Valid spectral range(s)
890.0 - 4000.0 $cm-1$
Spatial observation mode
averaged
Sample preview
Name
Tholins LATMOS Film-IR 98%N2:2%CH4
Origin
laboratory
Texture
compact
Thickness
489.9999999999999 $\pm$ 14.999999999999996 $nm$
Temperature
295.0 $\pm$ 2.0 $K$
References
Data reference
Gautier, Thomas (2011): Mid-IR absorption coefficient of Tholins synthesized from N2:CH4 gas with 1, 2, 5 and 10% CH4. SSHADE/SPAN (OSUG Data Center). Dataset/Spectral Data.
Publications
