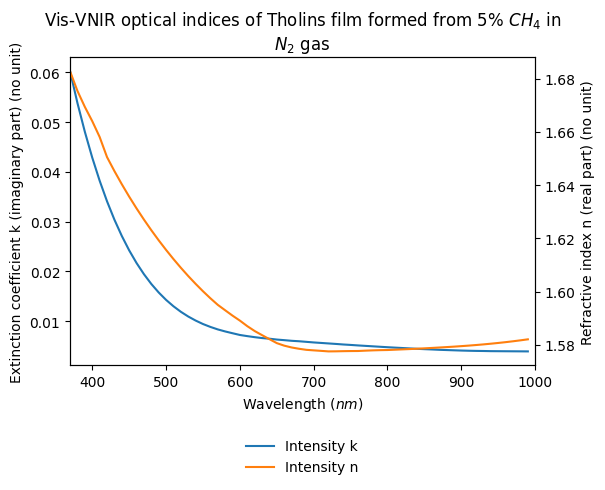

Spectrum preview
Title
Vis-VNIR optical indices of Tholins film formed from 5% $CH_4$ in $N_2$ gas
Database
Experiment type
laboratory measurement
Spectrum type
optical constants
Version
#1 (2018-05-03 16:55:14 UTC+0000)
Instrument parameters
Instrument
UV-NIR ellipsometry
Spectral observation mode
spectrum
Valid spectral range(s)
370.0 - 1000.0 $nm$
Observation geometry
specular : i=70.0° ; e=70.0° ph=140.0°
Angle observation mode
fixed angles
Spatial observation mode
single spot
Sample preview
Name
Tholins LATMOS Film 95%N2:5%CH4
Origin
laboratory
Texture
compact
Thickness
850.0 $\pm$ 30.0 $nm$
Temperature
295.0 $\pm$ 2.0 $K$
References
