- Title
- Ion irradiation ($He^+$) of a Griffithite saponite pellet probed by IR spectroscopy in the Vis-NIR range
- DOI
- 10.26302/SSHADE/EXPERIMENT_SR_20200204_02
- Data reference
- Rubino, Stefano (2020): Ion irradiation ($He^+$) of a Griffithite saponite pellet probed by IR spectroscopy in the Vis-NIR range. SSHADE/DAYSY (OSUG Data Center). Dataset/Spectral Data. https://doi.org/10.26302/SSHADE/EXPERIMENT_SR_20200204_02
- Publications
- Database(s)
- Experimentalists
- Type(s)
- laboratory measurement
- Description

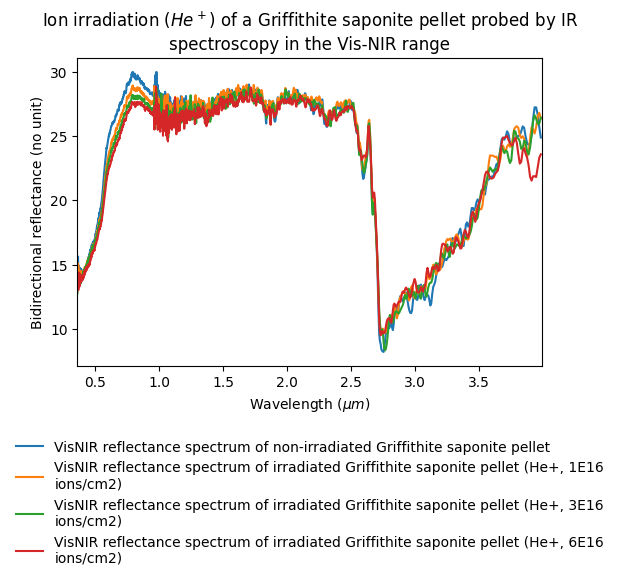

- Vis and Near-IR spectra of a pellet of "Saponite Griffithite", with different irradiation fluences.
- Number of spectra
- 4
- Variable type(s)
-
- irradiation dose
- Comments
- We irradiated a pellet of Saponite on the SIDONIE isotope separator at IJCLab (Orsay, France) using $He^+$ ions at 40 keV. The sample was mounted vertically and ion irradiation was performed at normal incidence. We measured four separate spectra corresponding to different fluences: $1.10^{16}$, $3.10^{16}$ and $6.10^{16}$ $ions.cm^{-2}$.
- Laboratory
- Institut d'Astrophysique Spatiale (IAS)
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- Vis
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 0.35995 - 1.5 0.0005 1.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 20.0°
- Emergence angle
- 15.0°
- Azimuth angle
- 0.0°
- Phase angle
- 20.0°
- Observation mode
- single spot
- Comments
- Collection spot size of 3-4 mm in diameter
- Instrument
- Bruker Tensor - reflection Near-IR
- Standard medium
- vacuum
- Observation mode
- spectrum
- Spectral range type(s)
- NIR
- Valid spectral range(s)
-
Min - Max (${\mu}m$) Sampling (${\mu}m$) Resolution (${\mu}m$) Position accuracy (${\mu}m$) Absorption edge #1 1.0 - 3.9989 0.0005 1.0
Definition: incidence and emergence angles are positive with origin at nadir, and vary in same direction. Azimuth origin (increasing clockwise) is for i = e (opposition geometry).
- Observation geometry
- bidirectional
- Observation mode
- fixed angles
- Incidence angle
- 20.0°
- Emergence angle
- 15.0°
- Azimuth angle
- 0.0°
- Phase angle
- 15.0°
- Observation mode
- single spot
- Comments
- Collection spot size of 3-4 mm in diameter
- Date begin
- 2020-02-04
Versions
- Release date
- 2022-05-28 20:10:40 UTC+0000
- Version (Date)
- #1 (2022-05-28 20:10:40 UTC+0000, Updated: 2022-07-08 09:22:31 UTC+0000)
